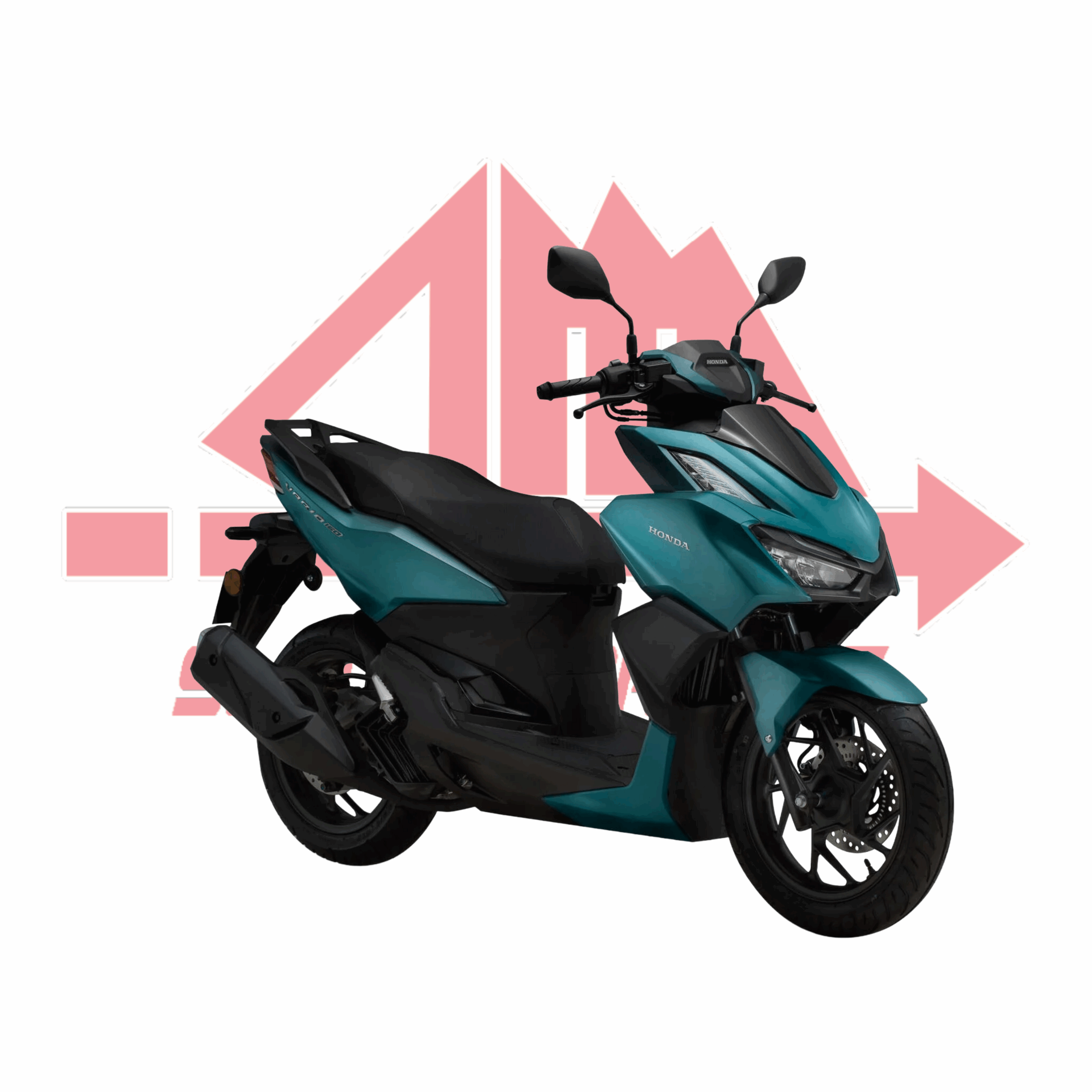

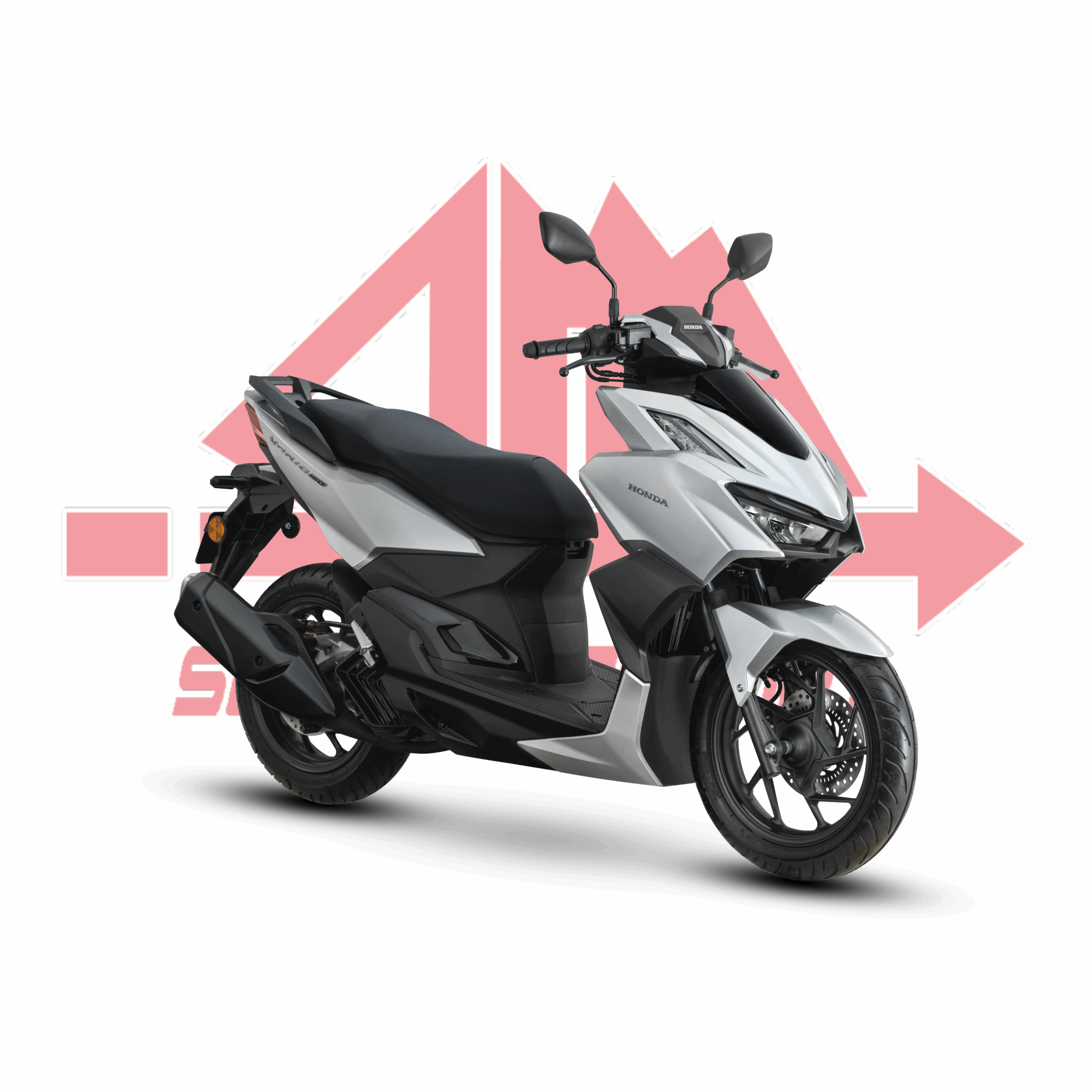

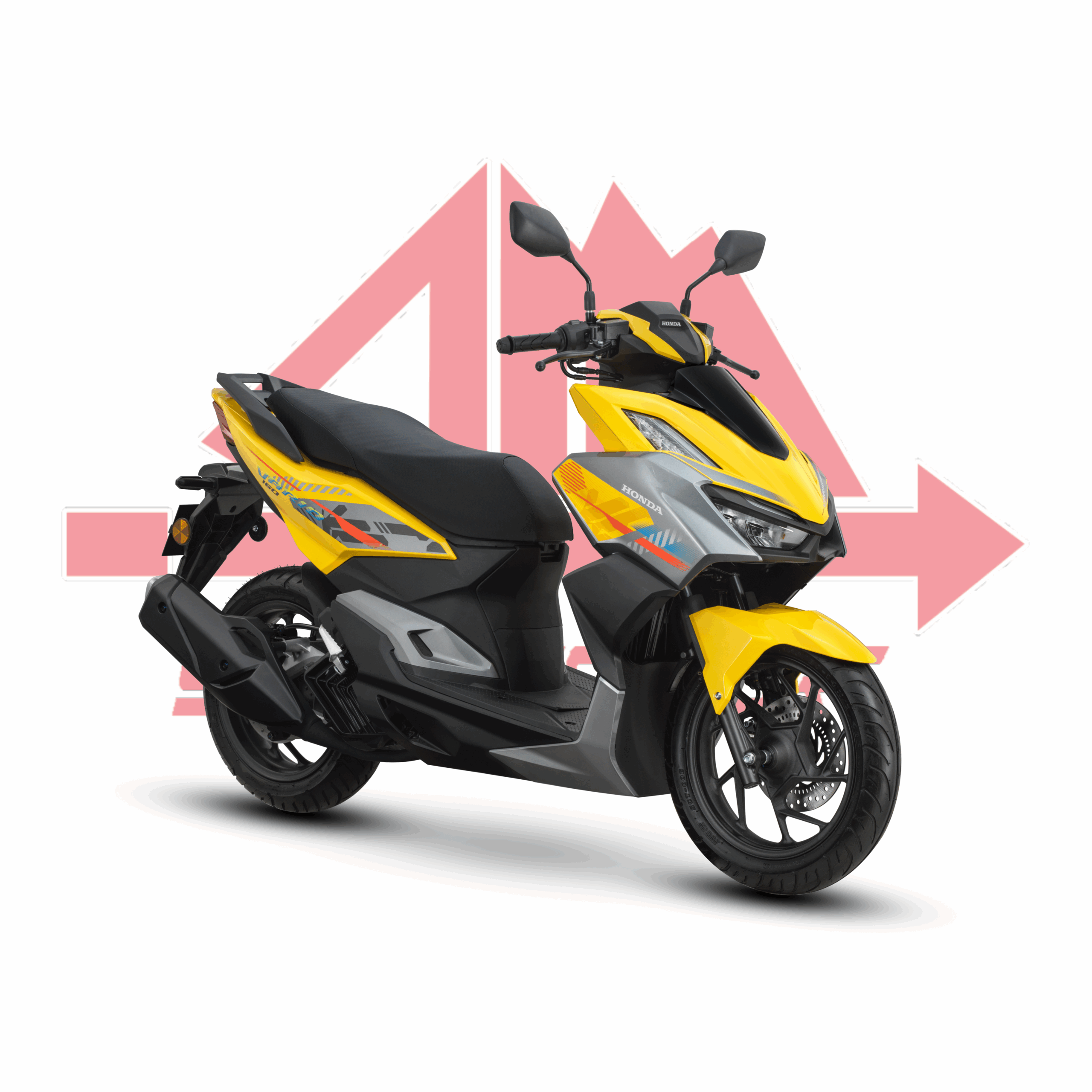

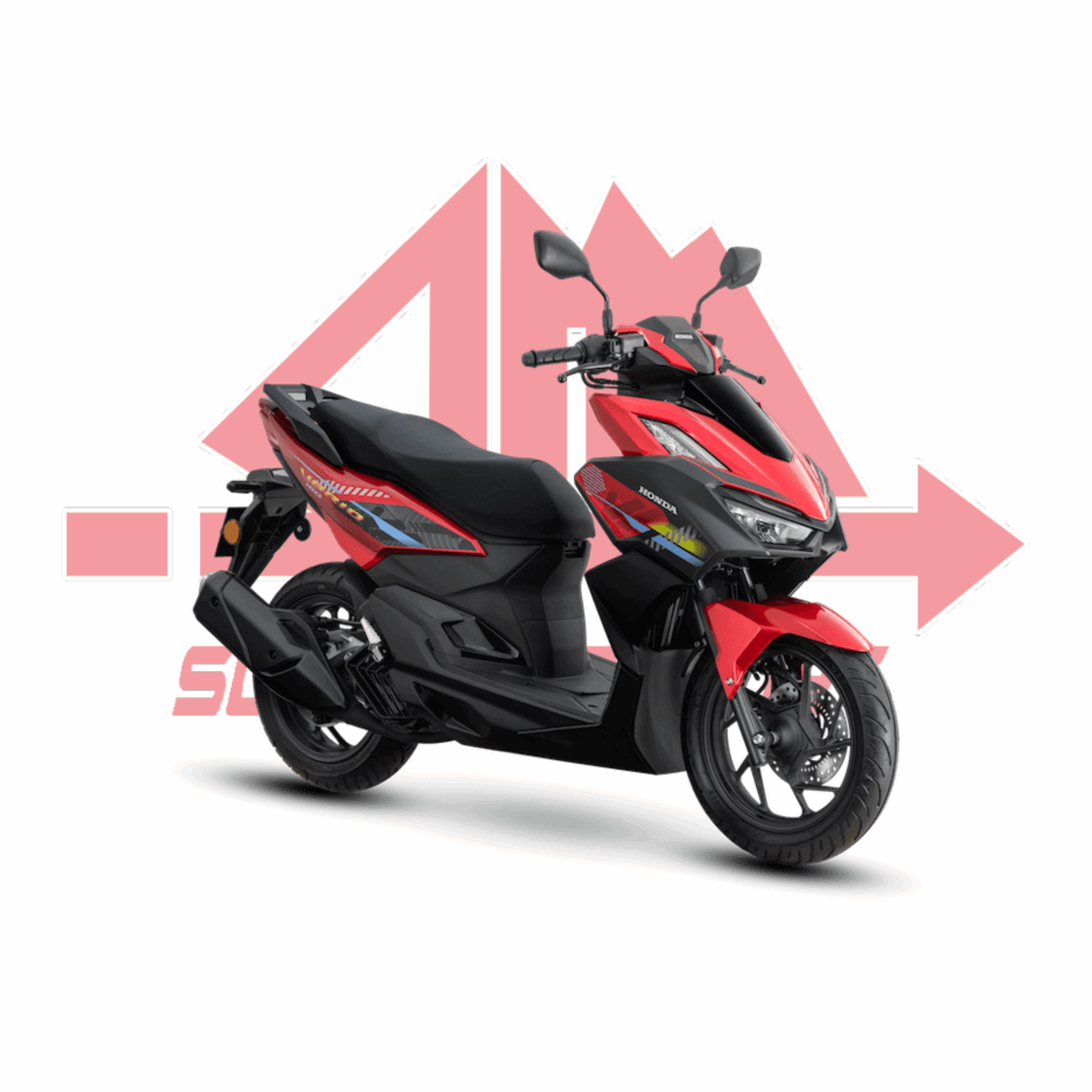

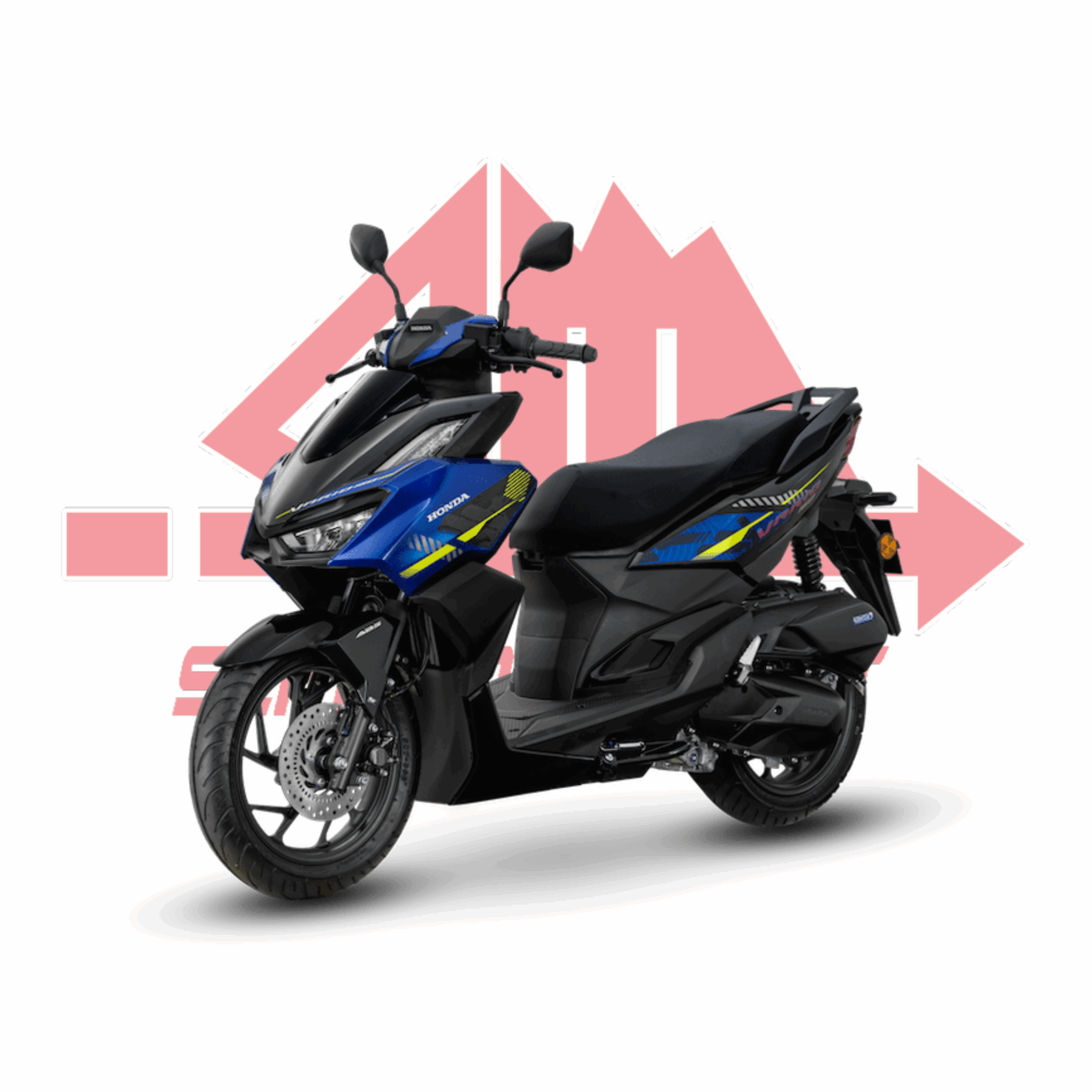

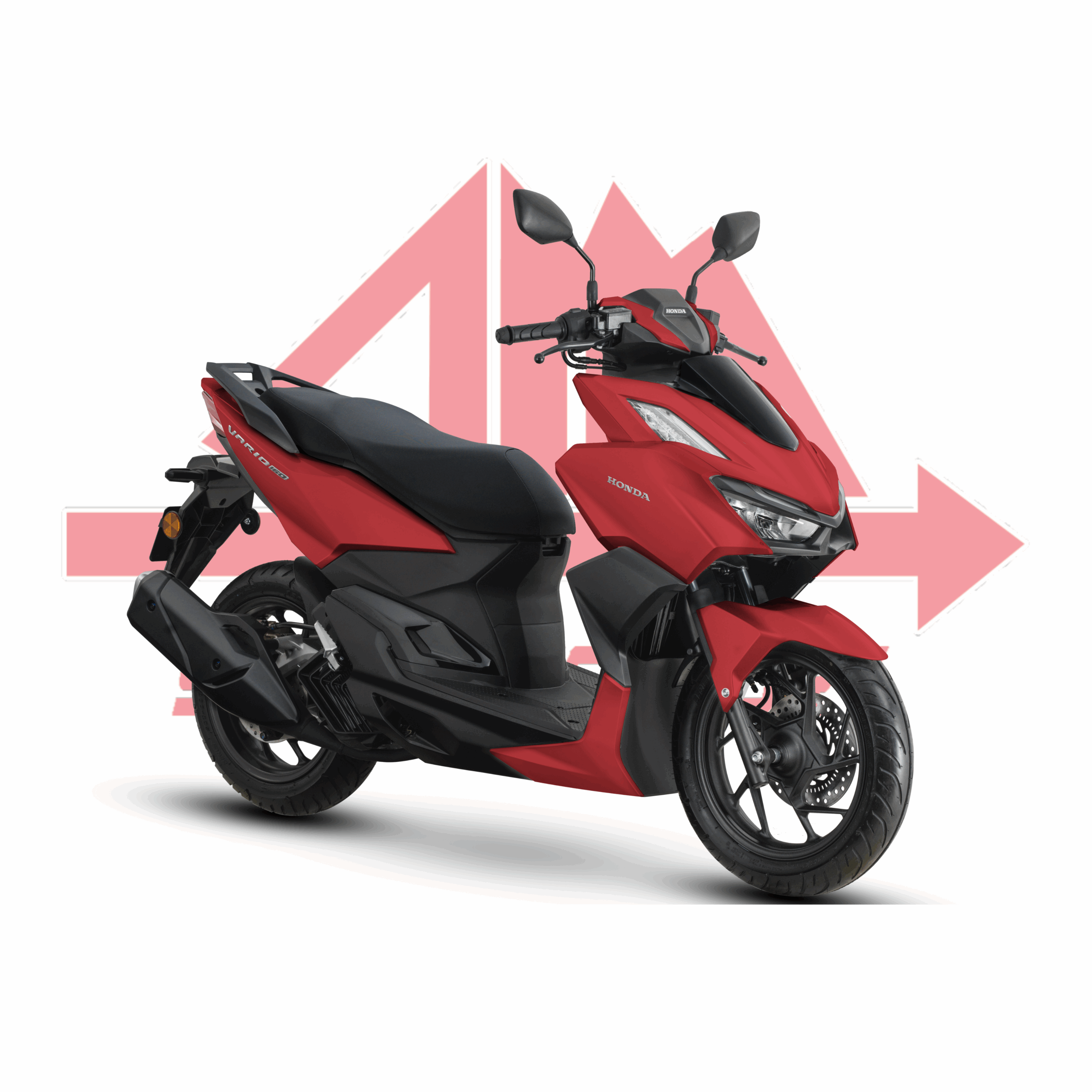

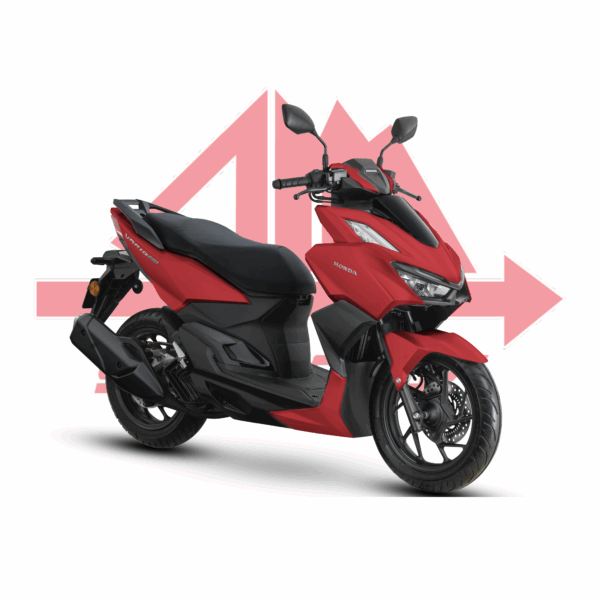

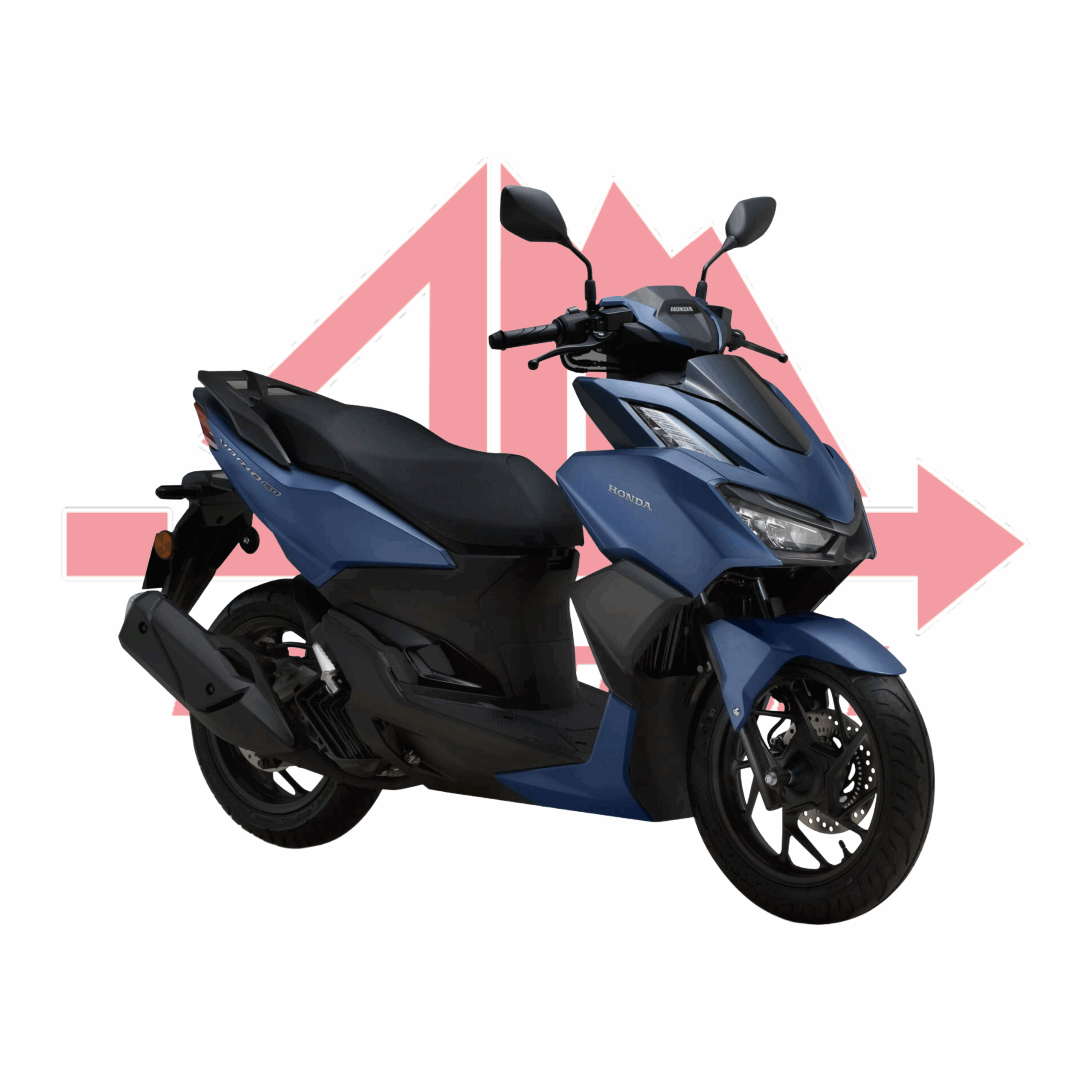

HONDA VARIO 160

Engine

• Type Single Cylinder, Liquid Cooled, SOHC 4 Stroke 4 Valve, eSP+
• Displacement 156.9 cm³
• Bore X Stroke 60.0 mm x 55.5 mm
• Compression Ratio 12.0 : 1
• Max. Power 11.3 kW / 8,500 rpm
• Max. Torque 13.8 Nm / 7,000 rpm
• Engine Oil Capacity 0.8 ℓ (After Draining), 0.9 ℓ (After disassembly)

Electrical System

• Starter Electric Auto Start
• Battery Capacity 5.0 A.h (10 HR)
• ACG Output 12 V

Fuel System

• Type PGM-FI (Programmed Fuel Injection)
• Fuel Tank Capacity 5.5 ℓ

Chasis

• • Front Suspension
  • Telescopic Fork
  • Rear Suspension
  • Swing Arm

Body Frame Material

• Steel
• Side Wings

Suspension, Wheels & Brake

• Suspension Type Front Telescopic
• Rear Swing Arm with Single Suspension
• Tyre Front 100/80 – 14M/C (48P) (Tubeless)
• Rear 120/70 – 14M/C (61P) (Tubeless)
• Brakes Front Hydraulic Single Disc, ABS
• Rear Hydraulic Single Disc
