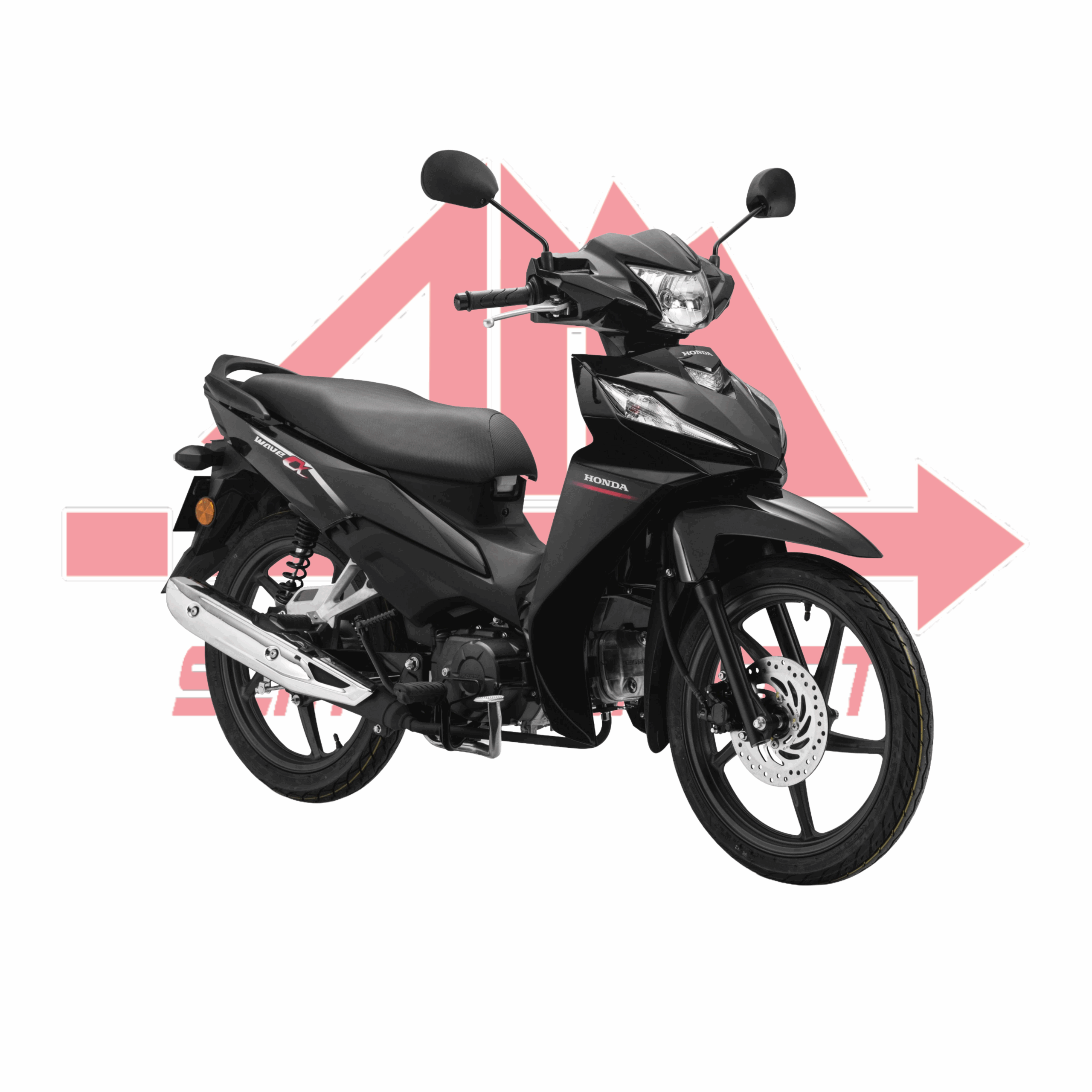

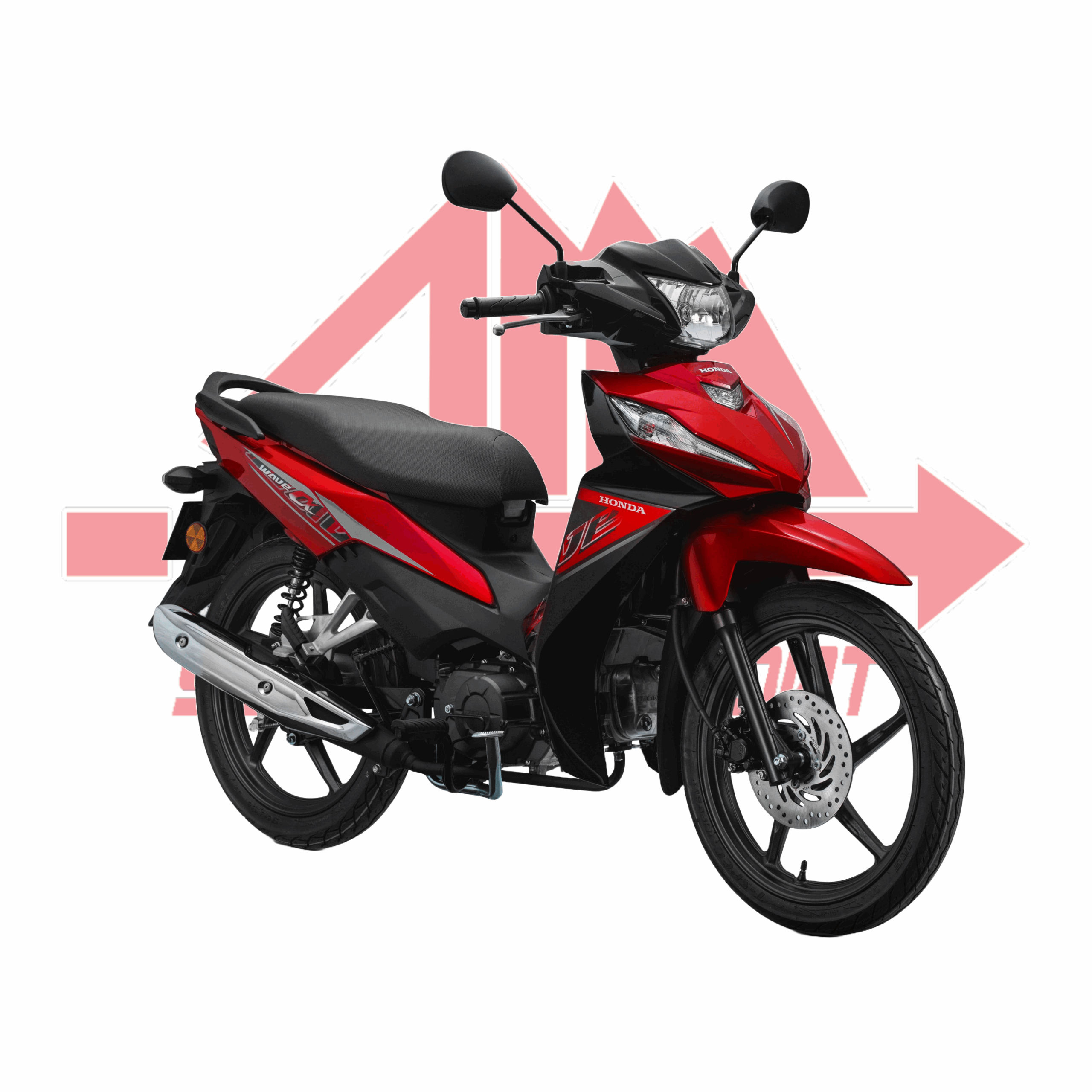

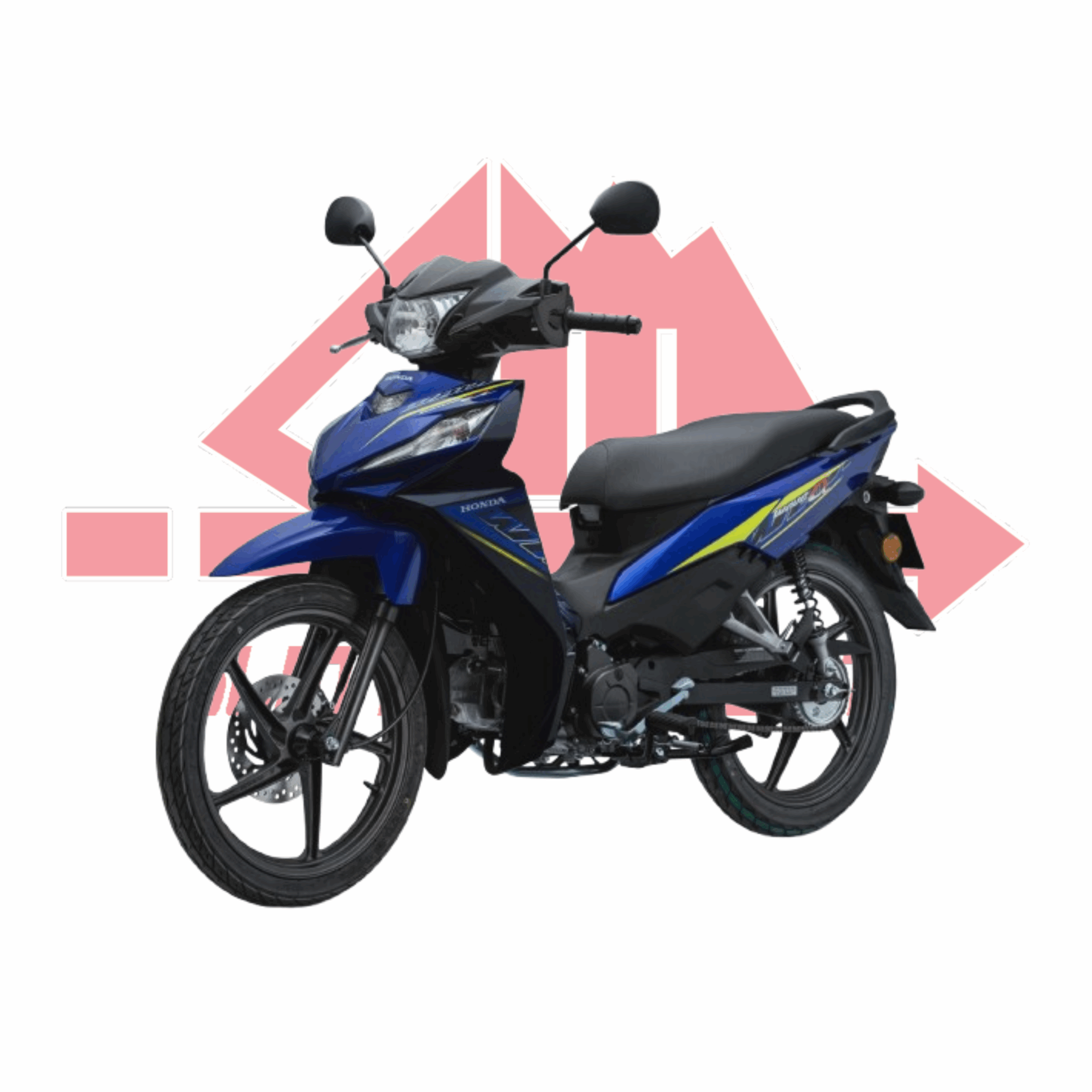

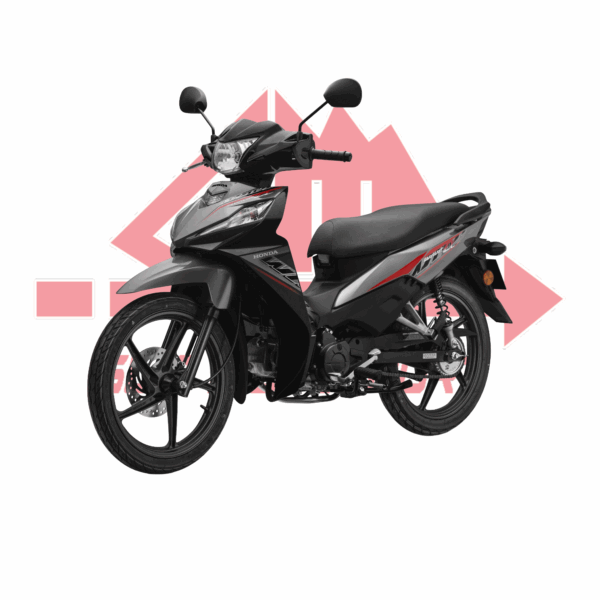

HONDA WAVE ALPHA FI

Engine

• Type: Single Cylinder, Air Cooled, SOHC 4-Stroke 2 Valve
• Displacement : 109.2 cm³
• Bore x Stroke : 50.0 mm x 55.6 mm
• Compression Ratio : 9.3 : 1
• Max. Power :6.5 kW / 7,500 rpm
• Max. Torque : 8.7 Nm / 5,500 rpm
• Engine Oil Capacity : 0.8 ℓ (After draining), 1.0 ℓ (After disassembly)

Electrical System

• Starter : Kick Starter with Electric Auto Start
• Battery Capacity 3.0 A.h (10 HR)
• ACG Output : 12 V”

Fuel System

• Type : PGM-FI (Programmed Fuel Injection)
• Fuel Tank Capacity : 4.0 ℓ

Chassis

• Frame Type : Back Bone
• Dimensions (L x W x H) : 1,935 mm x 709 mm x 1,090 mm
• Wheelbase : 1,227 mm
• Seat Height : 768 mm
• Ground Clearance : 138 mm
• Curb Weight : 98 kg

Suspension, Wheels & Brake

• Suspension
• Type Front Telescopic Fork
• Rear Swing Arm with Double Suspension
• Tyre Front 70/90 – 17M/C (38P) (Tubeless)
• Rear 80/90 – 17M/C (50P) (Tubeless)
• Brakes
• Front : Hydraulic Single Disc
• Rear : Mechanical Leading Trailing
